SMPTE Remote Control 4K 12G-SDI Fiber Transmission System With PGM Video Return

Features

Technical Characteristics

1. Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD);
compatible with DVB-ASI and AES10 (MADI);
2. Clock recovery function; (the clock restorer weakens high-frequency jitter and uses pure low-jitter clocks to regenerate data completely);
3. The clock restorer is locked to 11.88Gb ps, 5.94Gb ps, 2.97Gb ps, 1.4 85Gb ps or 1.001 fractional sub-rate and 270Mbps SMPTE rate;
4. The signal input has an automatic cable equalization (EQ) function, and the output has a drive (CD) function;
5. Support plug-in SFP optic modules, which can be replaced according to the actual needs of the site and different distances or interfaces corresponding optic modules; Support single-mode single fiber/dual-fiber transmission distance 10KM (default);
6. Support status light display;
7. Support a wide voltage 9-18V power supply, power plug with lock to prevent falling off during operation;
8. Plug and play, no debugging;

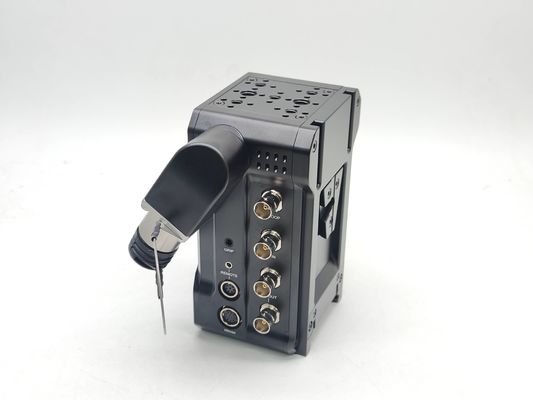

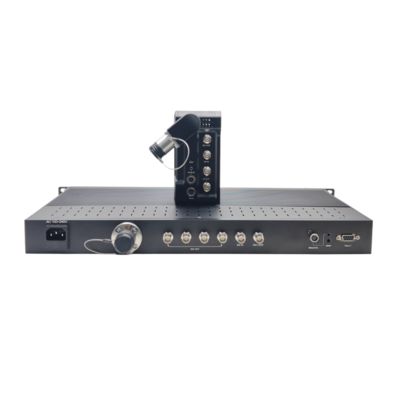

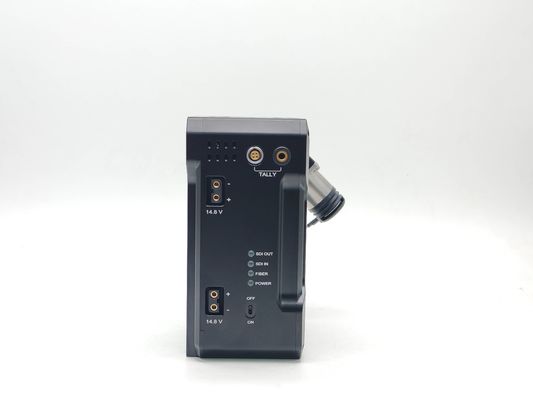

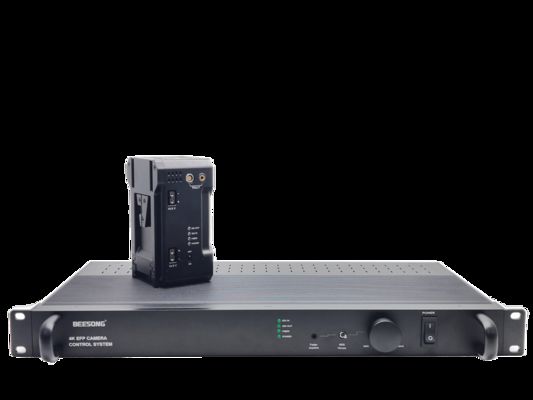

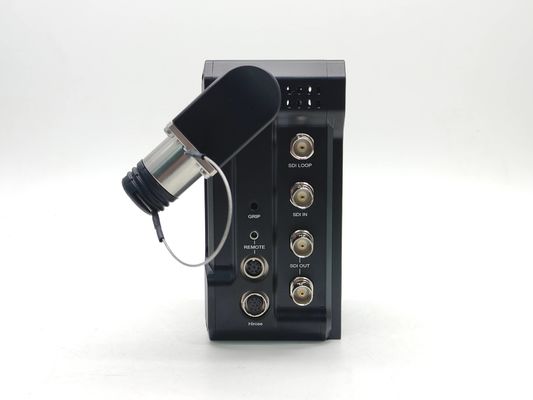

Pictures

Application

Broadcasting Video Transmission

High Quality HD-SDI Video Monitoring in Traffic Operation (ITS)

High Quality Images METRO Security

Avionic Surveillance System

Oil & Gas Perimeter Intruder

Detection Military Applications Premise Networks

Connection Diagram

Reminder

1. It is recommended to use the short optical fiber link for the first time to ensure that all the functions of the equipment are normal, and then do long-distance transmission

2. The signal of the fiber optic converter can be output to the power amplifier, but the audio source of the power amplifier can not be output the audio source signal to the fiber optic converter, otherwise the equipment will be burned

Troubleshooting of the indicator

1: Power indicator is abnormal (POWER)

Answer: Check whether the power adapter meets the equipment requirements or the power adapter fails

Whether the socket is not tight or loose

2: Fiber indicator is abnormal (FIBER)

Answer: Check whether the optical fiber interface is loose and not plugged in

Check whether the optical fiber is too attenuated

3: Video indicator is abnormal (VIDEO)

Answer: Check the signal source

Replace the video cable

4: Data indicator is abnormal (DATA)

Answer: Check the COM port, whether the baud rate is consistent

Check whether the serial port cable is connected backward

Attention

Lightning protection, static electricity, and grounding:

It is recommended that when installing the device, consideration should be given to the impact of grounding by lightning and prevention measures. Strong static electricity will damage the optical device and data chip in the equipment. It is recommended that when plugging/unplugging the data port of the optical converter, please disconnect the power supply of the optical converter first.

Fiber and optical components:

Be careful when plugging the optical fiber, as the optical components of the optical converter are very fragile, and you should avoid causing damage to the optical components. It should be noted that the light source produced by the optical components of the optical converter will be harmful to the eyes, so do not have direct eye contact with the optical components ofthe  optical converter. If you need to detect the optical power of the optical converter, please use the optical power meter.

Equipment and installation procedures:

1. Optical fiber installation: Please carefully insert the optical fiber into the optical fiber interface of the optical terminal after confirming that the optical fiber link meets the installation requirements.

2. Equipment installation: The equipment can be distinguished between transmitter and receiver, and it is stated clearly on the label and printed on the chassis of the equipment.
